DCSA BKG 2.0.4 - State Transition Diagram

Archived release: Booking v2.0.4 has been superseded. View the current v2 documentation.

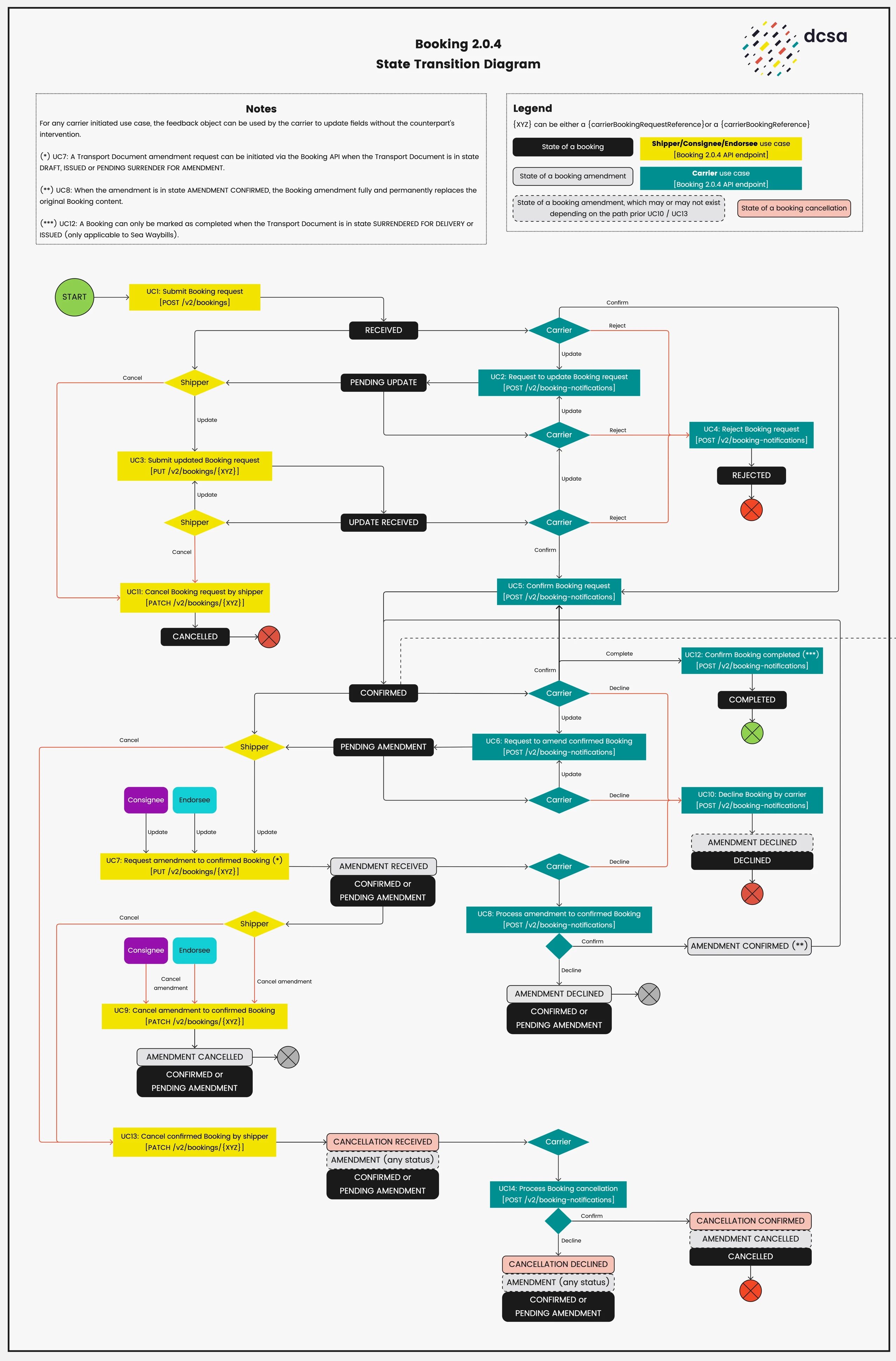

A state transition diagram represents the states a Booking can enter and the use cases that trigger transitions between them.

Legend

  • A large green circle marked START is the initial node.
  • A green crossed circle indicates completion. A red crossed circle indicates that the process stops. A grey crossed circle indicates that an update or amendment process stops.
  • A rhombus represents a decision with mutually exclusive or parallel paths.
  • Yellow rectangles represent Shipper, Consignee, or Endorsee use cases. Teal rectangles represent Carrier use cases. Each use case shows the corresponding DCSA standard API operation.
  • Black rounded rectangles represent Booking states. Grey rounded rectangles represent Booking amendment states. Red rounded rectangles represent Booking cancellation states.

Booking state transition diagram
